| BUS A/C REPLACEMENT PARTS (ROOFTOP & SPLIT SYSTEMS)
|
|
|
|
BUS A/C REPLACEMENT PARTS (ROOFTOP & SPLIT SYSTEMS) -- Rev. 02-03-05
|
|
DC MOTORS
| PART NUMBER |
VOLTS |
WATTS |
TYPE |
SHAFT |
| BM 5000022 (MOTOR FOR BH-1621-12V) |
12VDC |
180W |
PERMANENT MAGNET |
DUAL |
|
| |
 |
| |
 |
| TYPICAL AIR PERFORMANCE @ 13.5VDC |
| TORQUE (OZ/IN) |
SPEED (RPM) |
CURRENT (AMPS) |
VOLTAGE (VOLTS) |
| 10 |
4500 |
4.6 |
13.5 |
| 20 |
4320 |
7.2 |
13.5 |
| 30 |
4160 |
9.8 |
13.5 |
| 40 |
3980 |
12.6 |
13.5 |
| 50 |
3800 |
15.5 |
13.5 |
| 60 |
3570 |
18.6 |
13.5 |
| 70 |
3290 |
22.1 |
13.5 |
|
|
|
| PART NUMBER |
VOLTS |
DESCRIPTION |
BM 4380 |
24 |
Replacement Blower Motor for BH 1423M-24V |
BM 4379 |
12 |
Replacement Blower Motor for BH 1423M-12V |
|
|
|

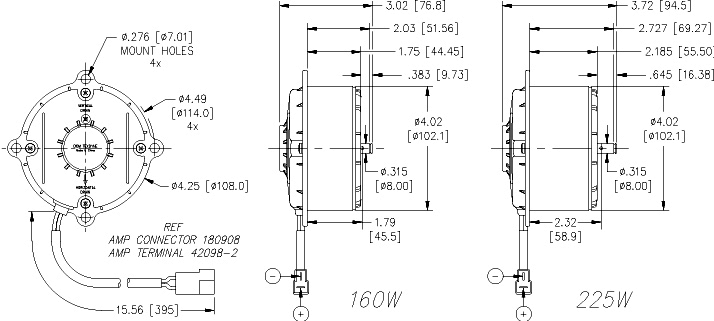

SPAL FAN MOTOR REPLACEMENT (160W AND 225W, 11", HIGH PROFILE, HIGH SPEED)
| PART NUMBER |
VOLTS |
WATTS |
TYPE |
SHAFT |
| BM 5000014-12V |
12VDC |
160W |
PERMANENT MAGNET |
SINGLE |
|
| |
 |
| |
 |
| TYPICAL AIR PERFORMANCE @ 13.5VDC |
| TORQUE (OZ/IN) |
SPEED (RPM) |
CURRENT (AMPS) |
VOLTAGE (VOLTS) |
| 10 |
3520 |
4.0 |
13.5 |
| 20 |
3410 |
5.9 |
13.5 |
| 30 |
3290 |
7.9 |
13.5 |
| 40 |
3180 |
9.7 |
13.5 |
| 50 |
3070 |
11.6 |
13.5 |
| 60 |
2960 |
13.5 |
13.5 |
| 70 |
2850 |
15.3 |
13.5 |
| 80 |
2740 |
17.2 |
13.5 |
| 90 |
2630 |
19.1 |
13.5 |
|
| |
|
| PART NUMBER |
VOLTS |
WATTS |
TYPE |
SHAFT |
| BM 4381-12V |
12VDC |
225W |
PERMANENT MAGNET |
SINGLE |
|
| |
 |
| |
 |
| TYPICAL AIR PERFORMANCE @ 13.5VDC |
| TORQUE (OZ/IN) |
SPEED (RPM) |
CURRENT (AMPS) |
VOLTAGE (VOLTS) |
| 10 |
3330 |
4.6 |
13.5 |
| 20 |
3250 |
6.2 |
13.5 |
| 30 |
3190 |
7.9 |
13.5 |
| 40 |
3080 |
9.6 |
13.5 |
| 50 |
3015 |
11.2 |
13.5 |
| 60 |
2930 |
12.9 |
13.5 |
| 70 |
2850 |
14.5 |
13.5 |
| 80 |
2780 |
16.1 |
13.5 |
| 90 |
2690 |
17.7 |
13.5 |
|
| |
|
|
SURTRACK MOTOR (REPLACES BOTH BLOWER & FAN ASSEMBLY MOTORS)
| PART NUMBER |
VOLTS |
TYPE |
SHAFT |
| BM 5000038-12V |
12VDC |
PERMANENT MAGNET |
SINGLE |
| BM 5000026-24V |
24VDC |
PERMANENT MAGNET |
SINGLE |
|
| |
 |
| |
 |
SPECIFICATIONS:
NOMINAL VOLTAGE: 26 VDC
NOMINAL SPEED: 2600 RPM
NOMINAL CURRENT: 3.5A
ROTATION: REVERSIBLE
OPERATION: CONTINUOUS
AMBIENT TEMP: -40 DEGREES CELCIUS, +80 DEGREES CELCIUS |
|
|
BRUSH CARDS
| PART NUMBER |
VOLTS |
DESCRIPTION |
BM 4380BC-12V |
12 |
3" Brush Card Assembly to replace in BM 4381-12V (Blower Housing Assembly) |
BM 4380BC-24V |
24 |
3" Brush Card Assembly to replace in BM 4381-24V (Blower Housing Assembly) |
|
|
|
BLOWER WHEELS
| PART NUMBER |
DESCRIPTION |
BW 0900 |
Replaces 2090 Revcor Blower Wheel (for both BH 1423M-12V and BH 1423M-24V) |
|
|
|
CERAMIC RESISTOR HARNESSES
| PART NUMBER |
VOLTS |
DESCRIPTION |
WH 1423M-12V |
12 |
Replacement Ceramic resistor ONLY for BH 1423M-12V |
WH 1423M-24V |
24 |
Replacement Ceramic resistor ONLY for BH 1423M-24V
MINIMUM ORDER 200 |
WH 1423 |
|
Wire Harness ONLY for WH 1423M-12V and WH 1423M-24V
MINIMUM ORDER 100 |
|
|
|
|
Universal Air Conditioner // 1441 Heritage Parkway, PO Box 299 // Mansfield, TX 76063
817-740-3900 // fax 817-740-3997
|
|
|
|
|
|
|
|
|
