Clamp Assembly
UAC PART NO. Description Assy. Quantity Photo
FC 3800 #6 Clamp Assembly
Red		 1
FC 3801 #6 Clamp Assembly
Red With Red End Cap Packaging		 20
FC 3802 #8 Clamp Assembly
Black		 1
FC 3803 #8 Clamp Assembly
Black With Black End Cap Packaging		 20
FC 3804 #10 Clamp Assembly
Yellow		 1
FC 3805 #10 Clamp Assembly
Yellow With Yellow End Cap Packaging		 20
FC 3806 #12 Clamp Assembly
Green		 1
FC 3807 #2 Clamp Assembly
Green With Green End Cap Packaging		 20


Hose
UAC PART NO. Description Reel Quantity Photo
FH 3800 5/16" ID Barrier Hose
#6 Air-O-Crimp Hose
ID: .320" [8.13mm]
OD: .580" [14.73mm]
500ft Reel		 1
Note: Air-O-Crimp hose is engineered to work exclusively with Air-O-Crimp Clamps and Fittings.
No other hose is warrantied.
FH 3801 13/32" ID Barrier Hose
#8 Air-O-Crimp Hose
ID: .420" [10.67mm]
OD: .690" [17.53mm]
500ft Reel		 1
FH 3802 1/2" ID Barrier Hose
#10 Air-O-Crimp Hose
ID: .510" [12.95mm]
OD: .780" [19.81mm]
500ft Reel		 1
FH 3802 5/8" ID Barrier Hose
#12 Air-O-Crimp Hose
ID: .635" [16.13mm]
OD: .965" [24.51mm]
500ft Reel		 1


Tools For Air-O-Crimp Systems
UAC PART NO. Description Quantity Photo
TO 3800 Air Powered Crimping Tool 1
TO 3801 Flat Crimp Pliers 1
TO 3802 90º Crimp Pliers 1
TO 3541 Handheld Hose Cutters 1
TO 0021 Handheld Hose Cutters (TO 3541)
Replacement Blade		 1


Fittings

Straight Female Oring (All Fittings Include 1 Clamp Assembly)
UAC PART NO. Clamp Assy. (20pcs.) Thread F H Ports Photo
FT 8008 FC 3801 5/8-18 6 6 N/A
FT 8009 FC 3803 3/4-16 8 8 N/A
FT 8010 FC 3805 7/8-14 10 10 N/A
FT 8011 FC 3807 1 1/16-14 12 12 N/A
FT 8012 FC 3803 5/8-18 6 8 N/A
FT 8013 FC 3805 3/4-16 8 10 N/A
FT 8014 FC 3807 7/8-14 10 12 N/A
FT 8015 FC 3801 3/4-16 8 6 N/A
FT 8016 FC 3803 7/8-14 10 8 N/A


Straight Female Oring With Switch/Service Port (All Fittings Include 1 Clamp Assembly)
UAC PART NO. Clamp Assy. (20pcs.) Thread F H Ports Photo
FT 8017 FC 3801 5/8-18 6 6 16mm R134
FT 8018 FC 3803 3/4-16 8 8 1/4 SWP
FT 8019 FC 3803 3/4-16 8 8 16mm R134
FT 8020 FC 3805 7/8-14 10 10 1/4 SWP
FT 8021 FC 3805 7/8-14 10 10 13mm R134
FT 8022 FC 3805 7/8-14 10 10 M10 SWP
FT 8023 FC 3805 7/8-14 10 10 M12 SWP
FT 8024 FC 3805 7/8-14 10 10 16mm R134
FT 8025 FC 3807 1 1/16-14 12 12 13mm R134
FT 8026 FC 3807 1 1/16-14 12 12 M12 SWP
FT 8027 FC 3805 3/4-16 8 10 16mm R134
FT 8028 FC 3805 7/8-14 10 12 1/4 SWP
FT 80129 FC 3805 7/8-14 10 12 13mm R134
FT 8030 FC 3805 7/8-14 10 12 M12 SWP

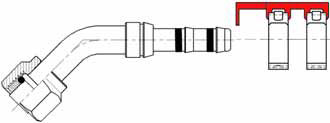

Female Oring 45º (All Fittings Include 1 Clamp Assembly)
UAC PART NO. Clamp Assy. (20pcs.) Thread F H Ports Photo
FT 8031 FC 3801 5/8-18 6 6 N/A
FT 8032 FC 3803 3/4-16 8 8 N/A
FT 8033 FC 3805 7/8-14 10 10 N/A
FT 8034 FC 3807 1 1/16-14 12 12 N/A
FT 8035 FC 3805 3/4-16 8 10 N/A
FT 8036 FC 3807 7/8-14 10 12 N/A

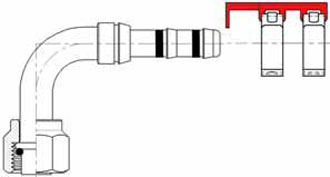

Female Oring 90º (All Fittings Include 1 Clamp Assembly)
UAC PART NO. Clamp Assy. (20pcs.) Thread F H Ports Photo
FT 8037 FC 3801 5/8-18 6 6 N/A
FT 8038 FC 3803 3/4-16 8 8 N/A
FT 8039 FC 3805 7/8-14 10 10 N/A
FT 8040 FC 3807 1 1/16-14 12 12 N/A
FT 8041 FC 3803 5/8-18 6 8 N/A
FT 8042 FC 3805 3/4-16 8 10 N/A
FT 8043 FC 3807 7/8-14 10 12 N/A
FT 8044 FC 3801 3/4-16 8 6 N/A


Female Oring 90º With Switch/Service Port (All Fittings Include 1 Clamp Assembly)
UAC PART NO. Clamp Assy. (20pcs.) Thread F H Ports Photo
FT 8045 FC 3801 5/8-18 6 6 16mm R134
FT 8046 FC 3803 3/4-16 8 8 1/4 SWP
FT 8047 FC 3803 3/4-16 8 8 16mm R134
FT 8048 FC 3805 7/8-14 10 10 1/4 SWP
FT 8049 FC 3805 7/8-14 10 10 13mm R134
FT 8050 FC 3805 7/8-14 10 10 M12 SWP
FT 8051 FC 3805 7/8-14 10 10 16mm R134
FT 8052 FC 3807 1 1/16-14 12 12 13mm R134
FT 8053 FC 3807 1 1/16-14 12 12 M12 SWP
FT 8054 FC 3805 3/4-16 8 10 1/4 SWP
FT 8055 FC 3805 3/4-16 8 10 16mm R134
FT 8056 FC 3807 7/8-14 10 12 1/4 SWP
FT 8057 FC 3807 7/8-14 10 12 13mm R134
FT 8058 FC 3807 7/8-14 10 12 M12 SWP
FT 8059 FC 3801 3/4-16 8 6 16mm R134

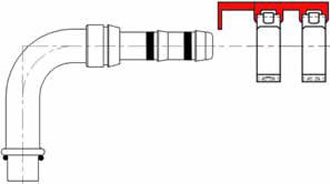

Long Pilot Oring 90º Without Nut (All Fittings Include 1 Clamp Assembly)
UAC PART NO. Clamp Assy. (20pcs.) Thread F H Ports Photo
FT 8060 FC 3801 N/A 6 6 N/A
FT 8061 FC 3805 N/A 10 10 N/A
FT 8062 FC 3805 N/A 12 10 N/A


Male Oring (All Fittings Include 1 Clamp Assembly)
UAC PART NO. Clamp Assy. (20pcs.) Thread F H Ports Photo
FT 8063 FC 3801 5/8-16 6 6 N/A
FT 8064 FC 3803 3/4-18 8 8 N/A
FT 8065 FC 3805 7/8-18 10 10 N/A
FT 8066 FC 3807 1 1/16-16 12 12 N/A
FT 8067 FC 3803 5/8-18 6 8 N/A
FT 8068 FC 3807 7/8-18 10 12 N/A

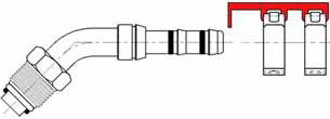

Male Oring 45º (All Fittings Include 1 Clamp Assembly)
UAC PART NO. Clamp Assy. (20pcs.) Thread F H Ports Photo
FT 8069 FC 3801 5/8-18 6 6 N/A
FT 8070 FC 3805 7/8-18 10 10 N/A

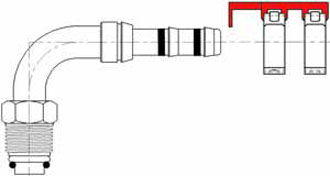

Male Oring 90º (All Fittings Include 1 Clamp Assembly)
UAC PART NO. Clamp Assy. (20pcs.) Thread F H Ports Photo
FT 8071 FC 3801 5/8-18 6 6 N/A
FT 8072 FC 3803 3/4-18 8 8 N/A
FT 8073 FC 3805 7/8-18 10 10 N/A
FT 8074 FC 3807 1 1/16-16 12 12 N/A
FT 8075 FC 3803 5/8-18 6 8 N/A
FT 8076 FC 3805 3/4-18 8 10 N/A
FT 8077 FC 3807 7/8-18 10 12 N/A

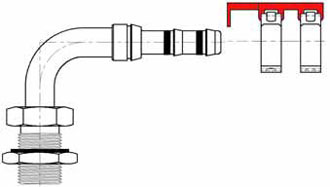

Male Insert Oring 90º Bulkhead (All Fittings Include 1 Clamp Assembly)
UAC PART NO. Clamp Assy. (20pcs.) Thread F H Ports Photo
FT 8078 FC 3803 3/4-16 8 8 N/A
FT 8079 FC 3805 7/8-14 10 10 N/A
FT 8080 FC 3807 7/8-14 10 12 N/A


Straight Male Insert Oring (All Fittings Include 1 Clamp Assembly)
UAC PART NO. Clamp Assy. (20pcs.) Thread F H Ports Photo
FT 8081 FC 3805 5/8-18 6 10 N/A
FT 8082 FC 3803 3/4-16 8 8 N/A
FT 8083 FC 3805 7/8-14 10 10 N/A
FT 8084 FC 3807 7/8-14 10 12 N/A

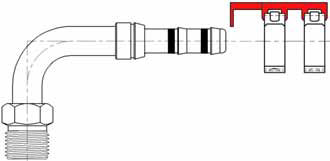

Male Insert Oring 90º (All Fittings Include 1 Clamp Assembly)
UAC PART NO. Clamp Assy. (20pcs.) Thread F H Ports Photo
FT 8085 FC 3803 3/4-16 8 8 N/A
FT 8086 FC 3805 7/8-14 10 10 N/A
FT 8087 FC 3803 5/8-18 6 8 N/A
FT 8088 FC 3805 3/4-16 8 10 N/A
FT 8089 FC 3807 7/8-14 10 12 N/A

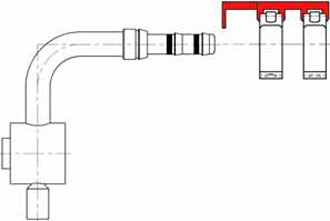

GM Compressor Pad BLK-Single W/ Switch/Service Port
UAC PART NO. Clamp Assy. (20pcs.) Thread F H Ports Photo
FT 8090 FC 3805 N/A CPR 10 1/4 SWP
FT 8091 FC 3807 N/A CPR 12 1/4 SWP


Straight Splicer (All Fittings Include 1 Clamp Assembly)
UAC PART NO. Clamp Assy. (20pcs.) Thread H H Ports Photo
FT 8092 FC 3801 N/A 6 6 N/A
FT 8093 FC 3803 N/A 8 8 N/A
FT 8094 FC 3805 N/A 10 10 N/A
FT 8095 FC 3807 N/A 12 12 N/A


Straight Splicer W/ Switch/Service Port(All Fittings Include 1 Clamp Assembly)
UAC PART NO. Clamp Assy. (20pcs.) Thread H H Ports Photo
FT 8096 FC 3801 N/A 6 6 1/4 SWP
FT 8097 FC 3801 N/A 6 6 16MM R134
FT 8098 FC 3803 N/A 8 8 1/4 SWP
FT 8099 FC 3803 N/A 8 8 16MM R134
FT 8100 FC 3803 N/A 8 8 M10 SWP
FT 8101 FC 3805 N/A 10 10 1/4 SWP
FT 8102 FC 3805 N/A 10 10 13MM R134
FT 8103 FC 3805 N/A 10 10 M10 SWP
FT 8104 FC 3805 N/A 10 10 16MM R134
FT 8105 FC 3807 N/A 12 12 1/4 SWP
FT 8106 FC 3807 N/A 12 12 13MM R134
FT 8107 FC 3807 N/A 12 12 M12 SWP

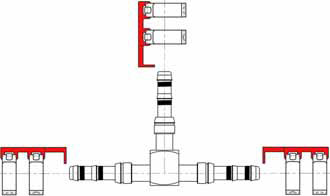

T Splicer - 3 Way Barb (All Fittings Include 1 Clamp Assembly)
UAC PART NO. Clamp Assy. (20pcs.) H1 H2 H3 Ports Photo
FT 8108 FC 3801 6 6 6 N/A
FT 8109 FC 3803 8 8 8 N/A
FT 8110 FC 3805 10 10 10 N/A
FT 8111 FC 3807 12 12 12 N/A
FT 8112 FC 3801 & 3 8 8 6 N/A
FT 8113 FC 3805 & 7 12 12 10 N/A

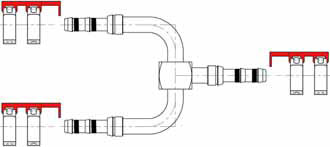

Y Splicer - 3 Way Barb (All Fittings Include 1 Clamp Assembly)
UAC PART NO. Clamp Assy. (20pcs.) H1 H2 H3 Ports Photo
FT 8114 FC 3803 8 8 8 N/A
FT 8115 FC 3807 12 12 12 N/A

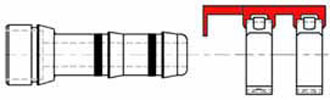

Straight Weld-On Barb (All Fittings Include 1 Clamp Assembly)
UAC PART NO. Clamp Assy. (20pcs.) Thread Tube H Ports Photo
FT 8116 FC 3801 N/A 3/8 6 N/A
FT 8117 FC 3803 N/A 1/2 8 N/A
FT 8118 FC 3805 N/A 5/8 10 N/A
FT 8119 FC 3807 N/A 3/4 12 N/A
FT 8120 FC 3807 N/A 5/8 12 N/A


Straight Female Oring Metric (All Fittings Include 1 Clamp Assembly)
UAC PART NO. Clamp Assy. (20pcs.) Thread F H Ports Photo
FT 8121 FC 3803 M20 x 1.5 M20 8 N/A
FT 8122 FC 3805 M20 x 1.5 M20 10 N/A

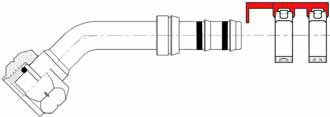

Female Oring 45º Metric (All Fittings Include 1 Clamp Assembly)
UAC PART NO. Clamp Assy. (20pcs.) Thread F H Ports Photo
FT 8123 FC 3807 M27 x 2.0 M27 12 N/A

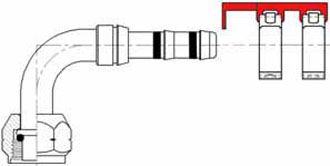

Female Oring 90º Metric (All Fittings Include 1 Clamp Assembly)
UAC PART NO. Clamp Assy. (20pcs.) Thread F H Ports Photo
FT 8124 FC 3801 M20 x 1.5 M20 6 N/A
FT 8125 FC 3803 M20 x 1.5 M20 8 N/A
FT 8126 FC 3805 M24 x 2.0 M24 10 N/A
FT 8127 FC 3807 M27 x 2.0 M27 12 N/A

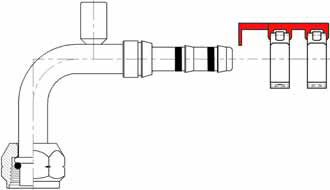

Female Oring 90º Metric W/ Switch/Service Port (All Fittings Include 1 Clamp Assembly)
UAC PART NO. Clamp Assy. (20pcs.) Thread F H Ports Photo
FT 8128 FC 3801 M20 x 1.5 M20 6 16mm R134
FT 8129 FC 3803 M20 x 1.5 M20 8 16mm R134
FT 8130 FC 3805 M24 x 2.0 M24 10 13mm R134


Straight Male Insert Oring Metric (All Fittings Include 1 Clamp Assembly)
UAC PART NO. Clamp Assy. (20pcs.) Thread F H Ports Photo
FT 8131 FC 3805 M20 x 1.5 M20 10 N/A


Neoprene Black Orings and Quad Rings

Oring for Pilot End Fitting
UAC PART NO. F A B Diagram
OR 8050 6 .301 .070
OR 8051 8 .426 .070
OR 8052 10 .551 .070
OR 8053 12 .676 .070


Quad Rings for Barb End Fitting
UAC PART NO. F A B Diagram
OR 8054 6 .145 .070
OR 8055 8 .208 .070
OR 8056 10 .289 .070
OR 8057 12 .301 .070
